 Connector
set for Bosch EV6 and EV14 (USCAR type connector)
injectors. A complete set includes body, pins, seals.
Click the picture of injector for
seeing USCAR connector. |
EV6CON1 |
|
 |
 Connector
set for Bosch and Nippon Denso injectors with
Sumitomo type connector.
A complete set includes body, pins and seals.
Click the picture of injector for
seeing ND type connector.
|
ND-CON-1-SET |
|
 |
Mating
connector for Nippon Denso (ND-CON-1-SET,
Sumitomo) type connector. |
ND-MATE-SET |
|
 |
Adapter for
injectors with USCAR connector. Adapts USCAR connector
to Bosch Jetronic (EV1) connector. No wires, just plug
in. |
USCAR-JET |
|
 |
2 pole
connector set for injectors, temperature sensors etc.
Wire size 0,5 -1,5 mm²
Jetronic - Bosch- AMP type connector.
|
JET-SET-1 |
|
 |
Pins for 034 Motorsport
coil
connector. Female pin (0,5-1,5 mm2) [Pull to seat] |
034PIN |
|
 |
Connector set
for GM 2 and 3-bar map sensors. A complete set. |
MAPCON1 |
|
 |
Junior Power
Timer (JPT) Bosch / Amp male body, available with 2, 3
or 4 poles. One wire sealing, can be used with the
silicone body seals (1280703...).
Suitable pins: JPT-MALE-1 and JPT-MALE-2
|
2 pole
3 pole
4 pole |
1928402448
1928402452
1928402373 |
|
 |
Junior Power
Timer (JPT) Bosch / Amp female body, available 2, 3, 4,
5, 6 and 7 poles. One wire sealing (JPT-seals),
can be used with the bigger body seals (1280703...). 2
pole connectors are suitable for injectors and
temperature sensors, 7 pole connector is suitable for
ignition modules.
Some connectors are available with
different colors. Suitable pins: JPT-FEMALE
7 pole connector
|
2 pole
3 pole
4 pole
5 pole
6 pole
7 pole |
1928402571
1928402638
1928402587
1928402595
1928402603
1248485108 |
|
 |
Junior Power
Timer (JPT) Bosch / Amp female body, available 2 and 3 poles. One wire sealing,
can be used with the bigger body seals (1280703...).
Suitable pins: JPT-FEMALE
CODE 2, this is not ''traditional" Jetronic
connector
|
2 pole
3 pole
|
1928402405 1928402413
|
|
1280703021, "short" |
Silicone
body cover/seal for Bosch
/ Amp JPT connectors.
Available for 2 to 7 pole connectors.
Two different lengths available for
the 2-pole one, short 37 and "normal" 57 mm.
These covers are silicone rubber, not
plastic. |
2
pole 2 pole
3 pole
4 pole
5 pole
6 pole
7 pole |
1280703021
1280703026
1280703022
1280703023
1280703024
1280703025
1280703027 |
|
 |
 |
Bosch Compact
Connector1 body. Suitable pin: JPT-FEMALE. One wire
sealing, can be used with the bigger body seals
(1928300...)
Used for sensors and actuators.
|
2 pole
3 pole
4 pole
5 pole
6 pole
7 pole |
1928403137
1928403110
1928403112
1928403146
1928403202
1928403220 |
|
 |
Bosch Compact Connector 1.a
(covered), Code 1, JPT-FEMALE pins. One wire sealing
system, can be used with the bigger body seals
(1928300...)
Used for sensors and actuators.
|
2 pole
3 pole
4 pole |
1928403698 1928403870
1928403913 |
|
 |
The mating
female connector for Compact series (Code 1). Use JPT-MALE pins.
One wire sealing or the bigger body seals. |
2 pole
3 pole
4 pole |
1928404226
1928404227
1928403453 |
|
 |

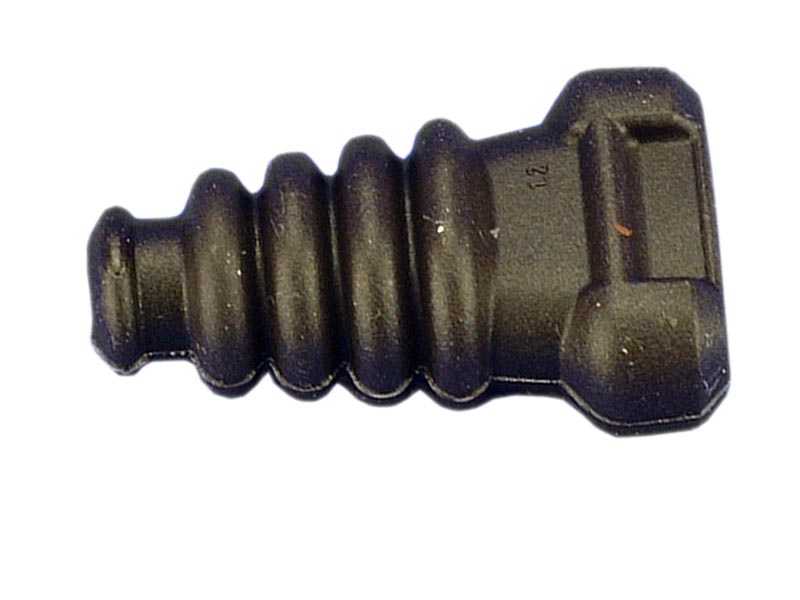

Ribbed silicone
cover/seal for Bosch / Amp connectors. Especially made
for Bosch Compact Connectors. |
2 to 4 pole |
1928300527 |
|
 |
Silicone
cover/seal for Bosch / Amp connectors. With 90 deg bend. Especially
made for Bosch Compact Connectors. |
2 pole 3
to 4 pole
5 to 7 pole |
1928300530
1928300531
1928300571 |
|
 |
Silicone
cover/seal for Bosch / Amp connectors. With 90 deg bend. Especially
made for Bosch Compact Connectors. |
2 pole 3
to 4 pole
5 to 7 pole |
1928300528
1928300529
1928300572 |
|
 |
JPT (Junior
Power Timer) male pin for Bosch and AMP male connectors.
Wire size 0,5-1,5 mm2. Can be used with one wire sealing
system.
JPT (Junior
Power Timer) male pin for Bosch and AMP male connectors.
Wire size 1,5-2,5 mm2. Can be used with one wire sealing
system.
|
JPT-MALE-1
JPT-MALE-2
|
|
 |
JPT (Junior
Power Timer) female pin for Bosch and AMP male
connectors. Wire size 0,5-1,5 mm2. Can be used with one
wire sealing system.
JPT (Junior
Power Timer) female pin for Bosch and AMP male
connectors. Wire size 1,5-2,5 mm2. Can be used with one
wire sealing system.
JPT (Junior
Power Timer) female pin for Bosch and AMP male
connectors. Wire size 0,5-1,5 mm2. Can be used with one
wire sealing system. Cold
plated!
|
JPT-FEMALE-1
JPT-FEMALE-2
JPT-FEMALE-1C
|
|
 |

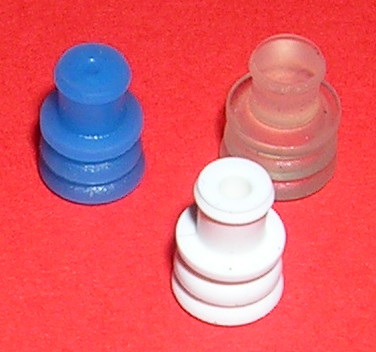

JPT (Junior
Power Timer) seal for Bosch and AMP connectors with one
wire sealing system. For wire size 0,5-1,5 mm2. BLUE JPT (Junior
Power Timer) seal for Bosch and AMP connectors with one
wire sealing system. For wire size 1,5-2,5 mm2. White
JPT (Junior
Power Timer) blind plug for Bosch and AMP connectors.
|
JPT-SEAL-1
JPT-SEAL-2
JPT-BLIND
|
|
 |
Pins in one
row. 4 pole connector is suitable for VAG ignition
coils. Pin
JPT-FEMALE. One wire sealing (JPT-SEAL), can be used with the bigger body seals.
Available complete set with pins and seals.
Matching part available.
Pin size
2,8 mm = Junior Power Timer
|
2 pole
3 pole
4 pole
5 pole
6 pole
|
1J0973772
1J0973723
1J0973724
6N0973755
1J09737726 |
|
 |
Pins in two rows.
Pin JPT-FEMALE. One wire sealing
(JPT-SEAL), can be used with the bigger body seals.
Available complete set with pins and seals. Matching
part available. Connector with 6
poles suitable for Bosch LSU wide band Lambda sensor 0258007057.
Pin size
2,8 mm = Junior Power Timer
|
6 pole
8 pole 10 pole 12
pole |
1J0973733
8D0973734
1J0973735
8L0972710 |
|
|
Pins in one row. Pin
JMT-FEMALE. One wire sealing (QUAD-SEAL-1), can be used with the bigger body seals.
Available complete set with pins and seals. Used with
sensors and actuators.
Pin size
1,5 mm = Junior Mini Timer
|
2 pole
3 pole
4 pole
5 pole
|
1J0973702
1J0973703
1J0973704
1J0973705 |
|
 |
Pins in two rows. Pin
JMT-FEMALE. One wire sealing
(JMT seal),
can be used with the bigger body seals.
Available with complete set with pins and
seals. 6 pin connector can be
used with electrical throttle valve assembly
etc.
Pin size 1,5 mm = Junior Mini
Timer
|
6 pole
8 pole 10 pole 12
pole
|
1J0973713
1J0973714
1J0973715
6X0973717 |
|
 |
Junior Mini Timer (JMT) SET, JMT female
pins for
wire size 0,35-1,0 mm2. . Pin
size 1,5 mm.
Water proof. Mating part 1J0973815-SET
|
1J0973715-SET |
|
 |
10 pole Junior Mini Timer (JMT) SET, JMT male pins,
JMT seals. For
wire size 0,35-1,0 mm².
Water proof. Mating part
1J0973715-SET
|
1J0973815-SET |
|
 |
14 pole connector, water proof. 6 pcs JPT Female
pins+ 8 pcs JMT female pins. Mating part 1J0973837
|
1J0973737 |
|
 |
14 pole connector. 6 pcs JPT male
pins+ 8 pcs JMT male pins. Mating part 1J0973737
|
1J0973837 |
|
 |
8 pole connector set with JPT Female pins
and seals. Water proof.
8D0973734-SET1 for
wire size 0,5 - 1,5 mm².
8D0973734-SET2
for wire size 1,5 - 2,5 mm².
|
8D0973734-SET1
8D0973734-SET2
|
|
 |
8 pole connector set with JPT male pins and
seals. Water proof.
8D0973834-SET1 for wire size 0,5 - 1,5 mm².
8D0973834-SET2 for wire size 1,5 - 2,5 mm².
|
8D0973834-SET1
8D0973834-SET2 |
|
 |
8 pole connector set with female pins
and seals. Delphi product. Water proof.
DELP-FE-8-SET-1 for wire size 0,35 - 1,0 mm².
DELP-FE-8-SET-2 for wire size 1,0 - 2,5 mm².
|
DELP-FE-8-SET-1
DELP-FE-8-SET-2 |
|
 |
8 pole connector set with male pins
and seals. Delphi product. Water proof.
DELP-MA-8-SET-1 for wire size 0,5 - 1,5 mm².
DELP-MA-8-SET-2 for wire size 1,5 - 2,5 mm².
|
DELP-MA-8-SET-1
DELP-MA-8-SET-2 |
|
 |
8 pole connector PAIR set with pins
and seals. Delphi product. Water proof.
DELP-PAIR-8-SET-1 for wire size 0,5 - 1,5 mm².
DELP-PAIR-8-SET-2 for wire size 1,5 - 2,5 mm².
|
DELP-PAIR-8-SET-1
DELP-PAIR-8-SET-2
|
|
 |
Junior Mini Timer (JMT) female pin, for
wire size 0,35-1,0 mm2.
JMT-SEAL
can be used with one wire sealing system. Pin
size 1,5 mm
|
JMT-FEMALE-1 |
|
 |
Junior Mini Timer (JMT) male pin, for
wire size 0,35-1,0 mm2. JMT-SEAL can be used with
one wire sealing system. Pin
size 1,5 mm
|
JMT-MALE-1
|
|
 |
Seal for JMT pins. Up to wire size 1,5 mm²
|
JMT-SEAL |
|
 |
6 pole connector, used with actuators
and sensors. Two versions with different coding. The same
connector body can be used, but one corner must be removed. Pin: QUAD-PIN-1, one wire seal: QUAD-SEAL-1
|
1928403095 |
|
 |
3 pole connector, used with high pressure
sensors, yaw sensors etc. Pin: QUAD-PIN-1,
seal: QUAD-SEAL-1
|
2205400681 |
|
 |
Silicone seal for
pin QUAD-PIN-1 and for
connectors 1928403095 and 2205400681.
|
QUAD-SEAL-1
|
|
 |
Pin for connectors 2205400681
and 1928403095. Wire size up to 0,5 mm2.
|
QUAD-PIN-1
|
|
 |
EconoSeal III pin, up to wire size 1,5
mm2. Used with control unit connector for USA and UK cars.
|
ECONO-PIN1 |
|
 |
Bosch Micro Terminal (BMK 0.6), used with
Bosch control unit connectors. Wire size up to 0,75 mm2.
|
Tin plated
Cold plated |
BMK-PIN1
BMK-PIN2 |
|
 |
Rubber cover/ seal for Bosch fuel pumps
electrical connectors. Waterproof. For wire size 4 mm2 -
10 mm2.
|
3130558000 |
|
 |
Extracting tool for JPT pins. Original Bosch product.
|
JPT-TOOL |
|
|
